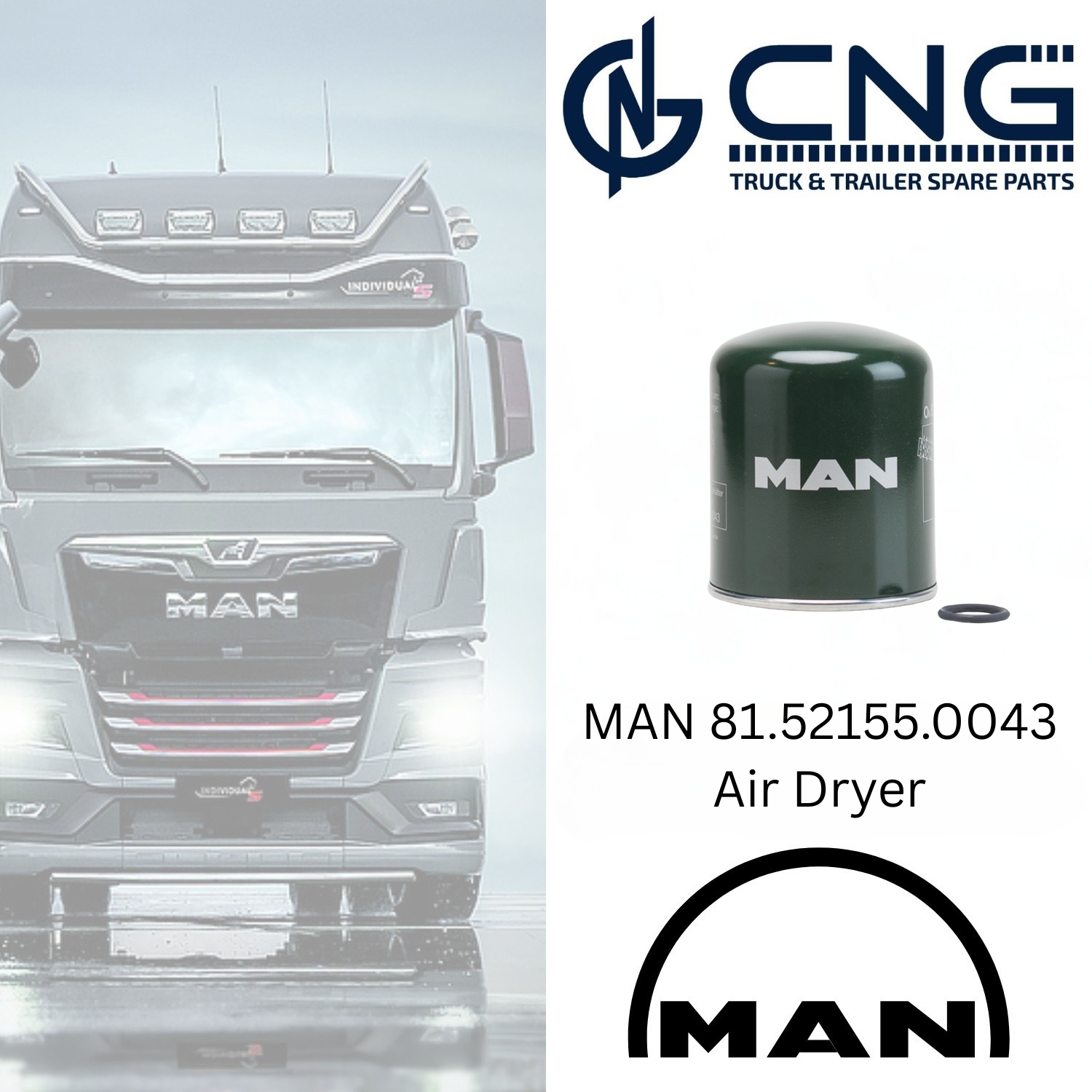

MAN 81.52155.0043 Air Dryer – Essential Moisture Protection for Heavy-Duty Air Brake Systems
The MAN 81.52155.0043 Air Dryer is a vital component in the pneumatic braking and air system of MAN commercial vehicles. Its main function is to remove moisture, oil vapors, and other contaminants from the compressed air before it is distributed throughout the vehicle’s air brake system. This filtration process prevents internal corrosion, ice buildup in cold climates, and damage to pneumatic components, ensuring maximum reliability and safety on the road.
Used widely across MAN TGL and TGM truck models, the 81.52155.0043 air dryer cartridge plays a key role in maintaining air brake performance and extending the life of the entire compressed air system. Designed as a spin-on cartridge, this component is easy to replace during regular maintenance intervals.
What Is an Air Dryer?
An air dryer in a truck is part of the compressed air management system. It is designed to remove water vapor and other contaminants from the air supplied by the vehicle’s air compressor. The cleaned, dry air is then used to operate brakes, suspension, and other air-powered systems.
In modern vehicles, especially Euro 4 and Euro 5 compliant trucks, clean air is critical for system reliability and to avoid expensive failures. The air dryer cartridge contains desiccant material that absorbs moisture and often includes an integrated coalescing filter to remove oil and fine particles.
Technical Specifications of MAN 81.52155.0043
- Part Number: 81.52155.0043
- Type: Spin-on air dryer cartridge
- Thread Size: M39 x 1.5
- Outer Diameter: Approx. 136 mm
- Height: Approx. 165 mm
- Weight: Approx. 2.78 kg
- Working Pressure: Up to 14 bar
- Construction: Composite housing with integrated oil separator and moisture-absorbing desiccant
- Compatibility: MAN TGL / TGM (Euro 4 / Euro 5 models)
Key Functions and Benefits
1. Moisture and Oil Removal
Compressed air from the engine contains water vapor and oil mist, both of which can damage valves, brake chambers, and actuators. The 81.52155.0043 air dryer cartridge filters out these elements, ensuring clean air delivery throughout the system.
2. Protection Against Freezing
Water vapor in air systems can condense and freeze, leading to dangerous brake failure in cold climates. The desiccant in this air dryer absorbs water, preventing freezing and ensuring safety in winter operations.
3. Extended System Life
Contaminant-free air prevents premature wear in expensive components like air valves and compressors. Using a quality air dryer like the MAN 81.52155.0043 helps reduce long-term maintenance costs and downtime.
4. OEM Quality and Fitment
As an original MAN component, this air dryer cartridge is manufactured to exact specifications and guarantees proper fitment, sealing, and filtration performance.
5. Easy Maintenance
The spin-on design allows for easy and quick replacement during service intervals without the need for specialized tools. This minimizes labor time and simplifies routine servicing.
Recommended Maintenance Intervals
MAN recommends replacing the air dryer cartridge every 12 months or approximately every 100,000 kilometers, depending on operating conditions. Harsh environments or high humidity may necessitate more frequent changes.
Signs the Air Dryer Cartridge Needs Replacement:
- Excess moisture in air tanks (visible water during drainage)
- Frequent purging sounds or shortened purge cycles
- Poor brake response or system errors
- Air system warning lights on the dashboard
Installation Tips
Replacing the air dryer cartridge requires basic mechanical tools and safety precautions:
- Ensure the air system is fully depressurized.
- Remove the old cartridge using an oil filter wrench.
- Clean the sealing surface and threads.
- Lubricate the gasket on the new cartridge.
- Spin on the new filter and tighten by hand plus an additional half turn.
- Pressurize the air system and check for leaks.
Always dispose of old cartridges responsibly, as they contain absorbed contaminants.
Compatibility and Applications
The MAN 81.52155.0043 air dryer cartridge is primarily used in:
- MAN TGL 7.5–12T models
- MAN TGM 15T–18T models
- Euro 4 and Euro 5 variants
- Air systems equipped with Knorr-Bremse or WABCO dryer assemblies
Check your vehicle’s VIN or consult the parts catalog to confirm compatibility.
Environmental Impact and Compliance
Using an efficient air dryer cartridge like this one contributes to environmental responsibility. Preventing moisture and oil from entering the air system minimizes the risk of premature component disposal and maintains low vehicle emissions by preserving system efficiency.
MAN 81.52155.0043 Air Dryer
The MAN 81.52155.0043 Air Dryer Cartridge is an essential maintenance component for any MAN TGL or TGM series truck. It offers reliable protection against moisture and contaminants, ensuring the long-term health and performance of the vehicle’s air brake system.
Fleet operators, independent workshops, and authorized service centers should include this filter in routine maintenance schedules to ensure consistent performance and safety.
