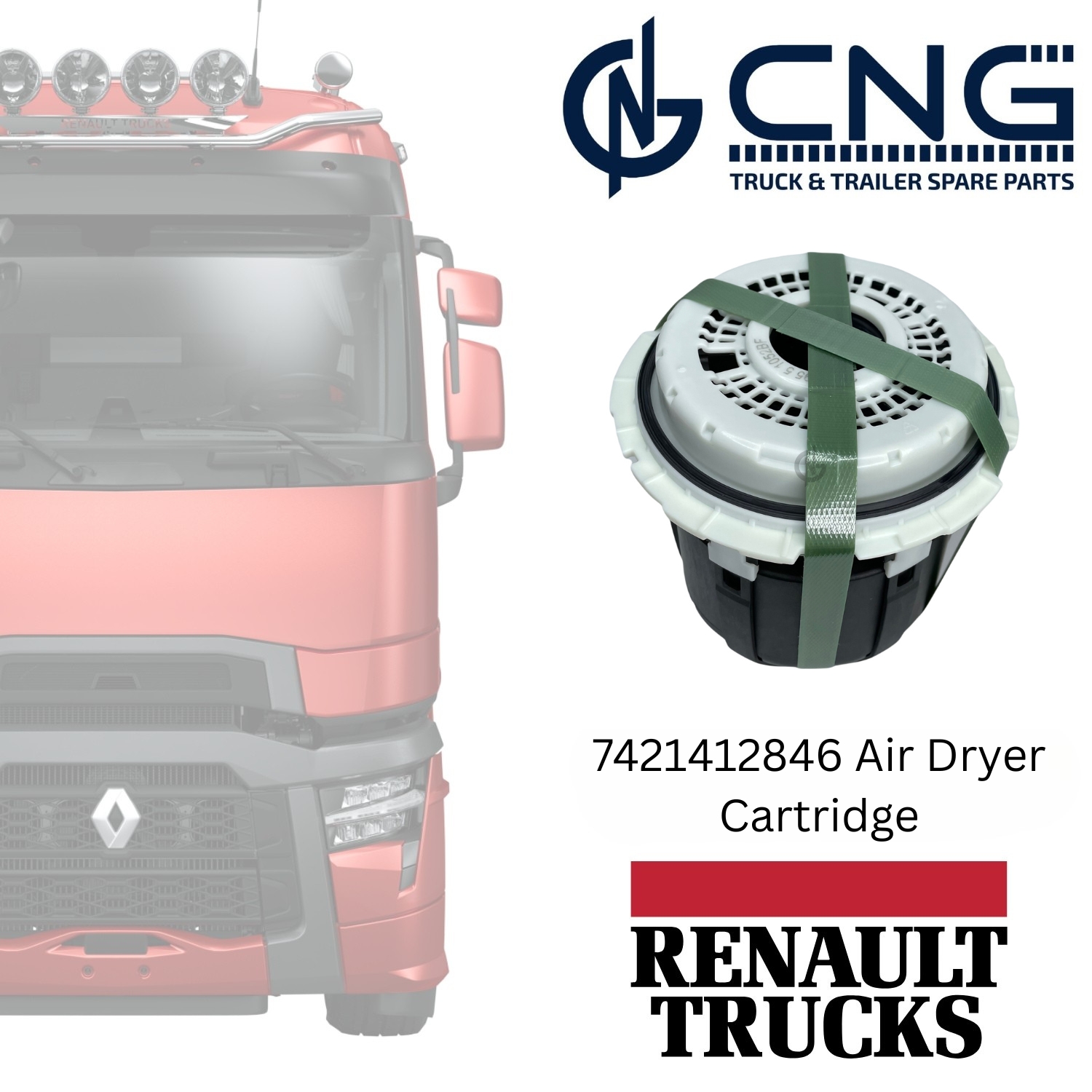

7421412846 Air Dryer Cartridge: Technical Analysis and Practical Applications
The 7421412846 air dryer cartridge is a vital component in the compressed air systems of heavy-duty commercial vehicles, particularly within the braking system. Found in trucks, buses, and trailers, this cartridge helps to ensure that the air used for braking is clean and dry. Moisture and contaminants in compressed air can severely damage pneumatic components and compromise braking performance. This article provides a comprehensive overview of the 7421412846 air dryer cartridge, exploring its function, specifications, compatibility, maintenance, and market significance.
1. Purpose and Function in Vehicle Systems
In commercial vehicles, compressed air systems are essential for air brakes, suspension systems, and other pneumatic controls. The compressor draws in ambient air, which often contains moisture, oil vapors, and particulate matter. If these contaminants enter the braking system, they can lead to corrosion, freezing, and mechanical failure.
The 7421412846 air dryer cartridge is designed to:
- Remove water vapor and oil residues from compressed air
- Protect air brake valves, actuators, and air reservoirs from corrosion
- Improve safety and reliability under varying environmental conditions
- Extend the lifespan of the air brake system
The cartridge achieves this through a desiccant material that absorbs moisture and a filter medium that traps debris and oil aerosols.
2. Technical Specifications
- Part Number: 7421412846
- Product Type: Air Dryer Cartridge (Spin-On Type)
- Compatible Systems: Knorr-Bremse, WABCO, or similar air drying units
- Material: Steel or aluminum housing with integrated desiccant core and fine filtration media
- Thread Size: M39x1.5 or compatible with standard air dryer units
- Filtration: Multi-stage filtration system with water separation and oil coalescing
- Desiccant Life: Typically 100,000 to 150,000 kilometers or 12–18 months of usage
- Operating Temperature Range: -40°C to +80°C
3. Compatibility and Applications
The 7421412846 air dryer cartridge is used in various truck and bus models manufactured by:
- Renault Trucks
- Volvo Trucks
- Other European heavy-duty vehicle platforms using matching air dryer systems
It is recommended to always verify compatibility with the vehicle’s VIN or consult the OEM service manual before installation. The cartridge may also be cross-referenced with equivalents from major aftermarket brands such as:
- MANN-FILTER TB 1394/7 X
- WABCO 4324102227
- DT Spare Parts 4.93038
4. Installation and Replacement Guidelines
Proper installation of the 7421412846 cartridge is crucial for optimal air system performance.
- Preparation: Drain the air tanks fully before starting replacement
- Installation:
- Use an appropriate filter wrench to remove the old cartridge
- Clean the mating surface on the dryer head
- Apply a light coat of oil to the gasket on the new cartridge
- Hand-tighten until the gasket contacts the base, then torque as specified (typically ~30 Nm)
- Post-Installation:
- Pressurize the system and check for leaks
- Ensure the purge valve cycles correctly
5. Signs of a Failing Air Dryer Cartridge
Timely replacement is essential. Warning signs include:
- Excessive moisture in the air tanks
- Freezing brakes in cold weather
- Oil contamination in air lines
- Longer system pressurization times
- Audible air leaks or hissing from purge valve
Delaying replacement can result in costly repairs and unsafe braking performance.
6. Aftermarket Quality Considerations
While genuine cartridges ensure optimal quality, the aftermarket provides cost-effective alternatives. When sourcing non-OEM versions of 7421412846, verify:
- Quality and amount of desiccant material
- Seal integrity and pressure rating
- Compliance with ISO/TS 16949 manufacturing standards
- Anti-corrosive coating on the outer shell
Brands like MANN, HENGST, and MAHLE offer high-reliability units that meet or exceed OEM specifications.
7. Packaging, Storage, and Handling
The 7421412846 air dryer cartridge is typically packaged in a branded box with anti-moisture packaging. Proper storage conditions include:
- Dry, dust-free environment
- Avoiding direct sunlight and high humidity
- Do not remove protective seal until installation
Correct handling ensures the desiccant remains effective until usage.
8. Global Demand and Trade Information
As Renault and Volvo trucks are used widely in Europe, Latin America, and parts of Africa and Asia, the 7421412846 cartridge sees consistent international demand. Exporters and distributors should note the appropriate HS Code: 84213925 (air filters for motor vehicles).
7421412846 Air Dryer Cartridge
The 7421412846 air dryer cartridge is a small yet critical component for maintaining the integrity and safety of compressed air systems in heavy-duty vehicles. Its role in removing moisture and contaminants protects vital pneumatic components from failure. Ensuring timely replacement and using quality parts—whether OEM or certified aftermarket—can drastically reduce maintenance costs and improve vehicle reliability. For fleet managers, mechanics, and exporters, understanding the value and specifics of this cartridge is key to sustaining high operational performance across diverse driving environments.
