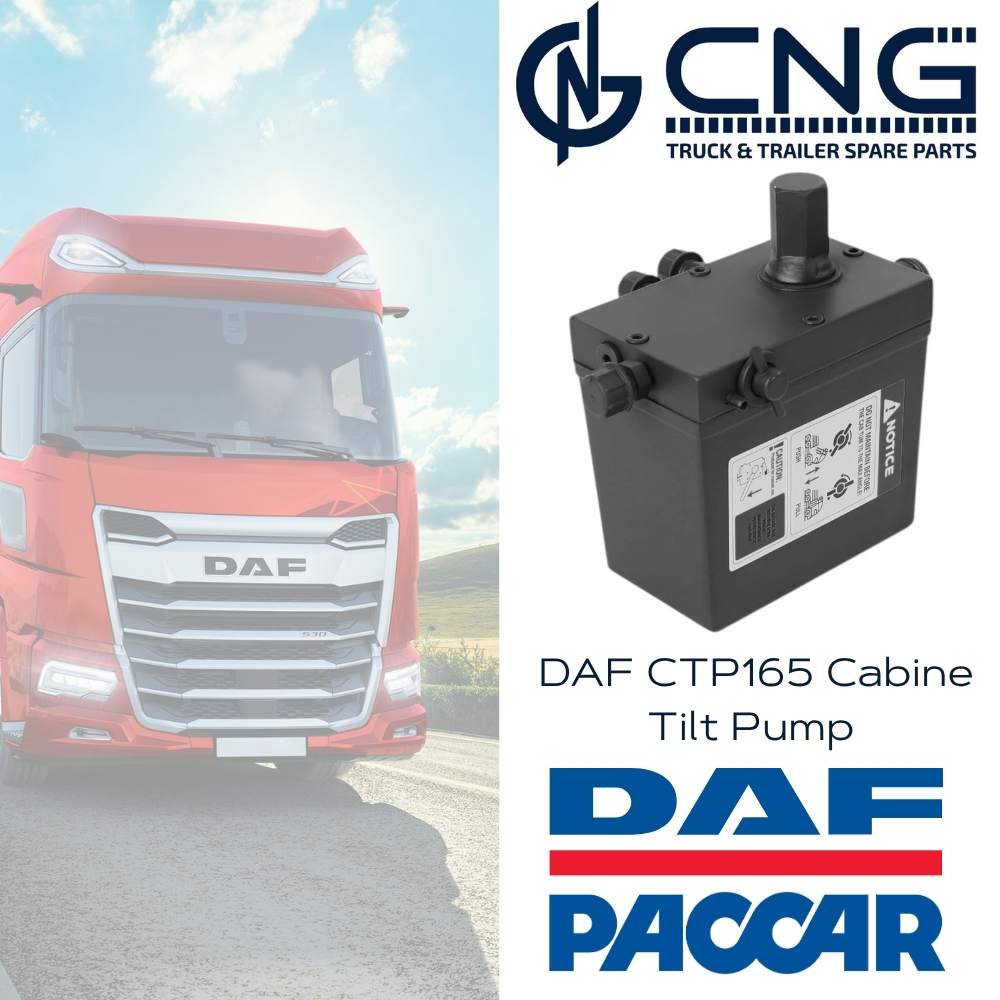

DAF CTP165 Cabine Tilt Pump: Comprehensive Technical Overview and Application Guide

The DAF CTP165 Cabine Tilt Pump is an essential hydraulic component used in heavy-duty DAF trucks to control the tilting mechanism of the driver’s cab. Cab tilting systems are crucial for providing access to the engine compartment for maintenance, repair, and inspection tasks. The CTP165 hydraulic pump enables smooth, controlled lifting and lowering of the cab, ensuring both operator safety and mechanical precision.



1. Function and Purpose of the Cab Tilt Pump

The cab tilt pump is part of a hydraulic cab tilting system, which typically includes:

  • Hydraulic pump (manual or electric)

  • Hydraulic cylinder

  • Reservoir tank

  • Hoses and fittings



The DAF CTP165 Cabine Tilt Pump model operates either manually (via a handle) or as an integrated component in a hydraulic system. It allows the operator to safely tilt the cab forward, granting full access to the engine bay. In DAF trucks, where compact engine packaging is common, this function is particularly important for quick diagnostics and component servicing.



2. Technical Specifications

  • Part Number: CTP165

  • Manufacturer: DAF Trucks / Certified OEM supplier

  • Operation Type: Manual hydraulic (lever-operated)

  • Pressure Capacity: Approx. 180–210 bar

  • Fluid Type: ISO VG32 or ISO VG46 hydraulic oil

  • Material: High-strength aluminum housing with steel internal components

  • Pump Stroke: Typically 10–15 ml per stroke

  • Mounting: Bolt-on flange base with integrated reservoir





3. Compatibility and Vehicle Application

The DAF CTP165 Cab Tilt Pump is compatible with a wide range of DAF trucks, including:

  • DAF XF105 / XF106 Series

  • DAF CF Series (construction, long-haul, and regional transport)

  • DAF LF Series (light-duty urban trucks)



The pump is typically mounted near the chassis frame or engine bay, connected directly to the hydraulic tilt cylinder and the control valve. Always cross-check the vehicle’s VIN to ensure compatibility.



4. Key Features and Operational Benefits

  • Safe Cab Tilting: Allows secure lifting and lowering of the cab without requiring external lifting equipment

  • Compact Design: Easy to install in tight spaces within the chassis or cab frame

  • Manual Control: Can be operated without electricity, making it ideal in breakdown situations

  • Corrosion Resistance: Built for rugged outdoor conditions with anti-corrosive materials

  • Maintenance-Free Operation: Sealed system reduces the need for regular maintenance



These benefits make the CTP165 pump highly reliable for fleet operators and service technicians.



5. Maintenance and Service Instructions

Regular Checks:

  • Inspect hydraulic oil level in the reservoir every 6 months

  • Check for leaks around seals, hose fittings, and joints

  • Test pump functionality during regular vehicle servicing



Maintenance Tips:

  • Use only manufacturer-approved hydraulic oil

  • Replace O-rings and seals if leakage is observed

  • Keep handle and pump housing clean from road grime and debris



Replacement Procedure:

  1. Relieve hydraulic pressure and secure cab in upright position

  2. Disconnect hydraulic hoses and mounting bolts

  3. Remove the old CTP165 pump

  4. Install new pump, secure with bolts, and reconnect hoses

  5. Prime the system and test for proper cab tilting action





6. Symptoms of a Failing Cab Tilt Pump

  • Difficulty tilting or lowering the cab

  • Visible fluid leaks near the pump

  • Handle becomes hard to operate or lacks resistance

  • Hydraulic fluid level drops frequently

  • Tilt system moves unevenly or not at all



Ignoring these issues may lead to unsafe conditions, including sudden cab descent or inability to access the engine.



8. Packaging, Storage, and Export Information

  • Packaged in durable boxes with foam inserts

  • Include installation instructions and part identification



Storage Tips DAF CTP165 Cabine Tilt Pump:

  • Store in an upright position to prevent fluid loss

  • Keep in a dry, cool place free from direct sunlight

  • Avoid stacking under heavy items



9. Global Demand and Trade Applications

DAF trucks are widely used in Europe, the Middle East, and parts of Africa and Latin America. The CTP165 pump is in regular demand due to:

  • Routine service requirements

  • Breakdown replacement

  • Vehicle rebuilding and export refurbishment



Major markets include:

  • Europe: Netherlands, Germany, Spain, Poland

  • Middle East: UAE, Turkey, Iraq

  • Africa: South Africa, Kenya, Nigeria

  • Latin America: Brazil, Chile, Peru





DAF CTP165 Cabine Tilt Pump

The DAF CTP165 Cabine Tilt Pump is a vital piece of equipment in any DAF truck’s maintenance framework. With its durable construction, high-pressure handling, and ease of manual operation, it ensures that operators and technicians can access engine components safely and efficiently. Whether used in routine maintenance or emergency roadside repairs, the CTP165 enhances uptime and serviceability—making it a critical investment for fleet owners and parts distributors alike.
